WTS3000CT Transmitter
Product description：
●Support hanging installation● Temperature data collect and transmit
● RS485 networking or 433MHz wireless communication
● Local audio and flash alarm
● Max.300 sensors
● 240X170X90MM,1.5KG
Viewed：448
- Overview
- Function
- Specification
- Download

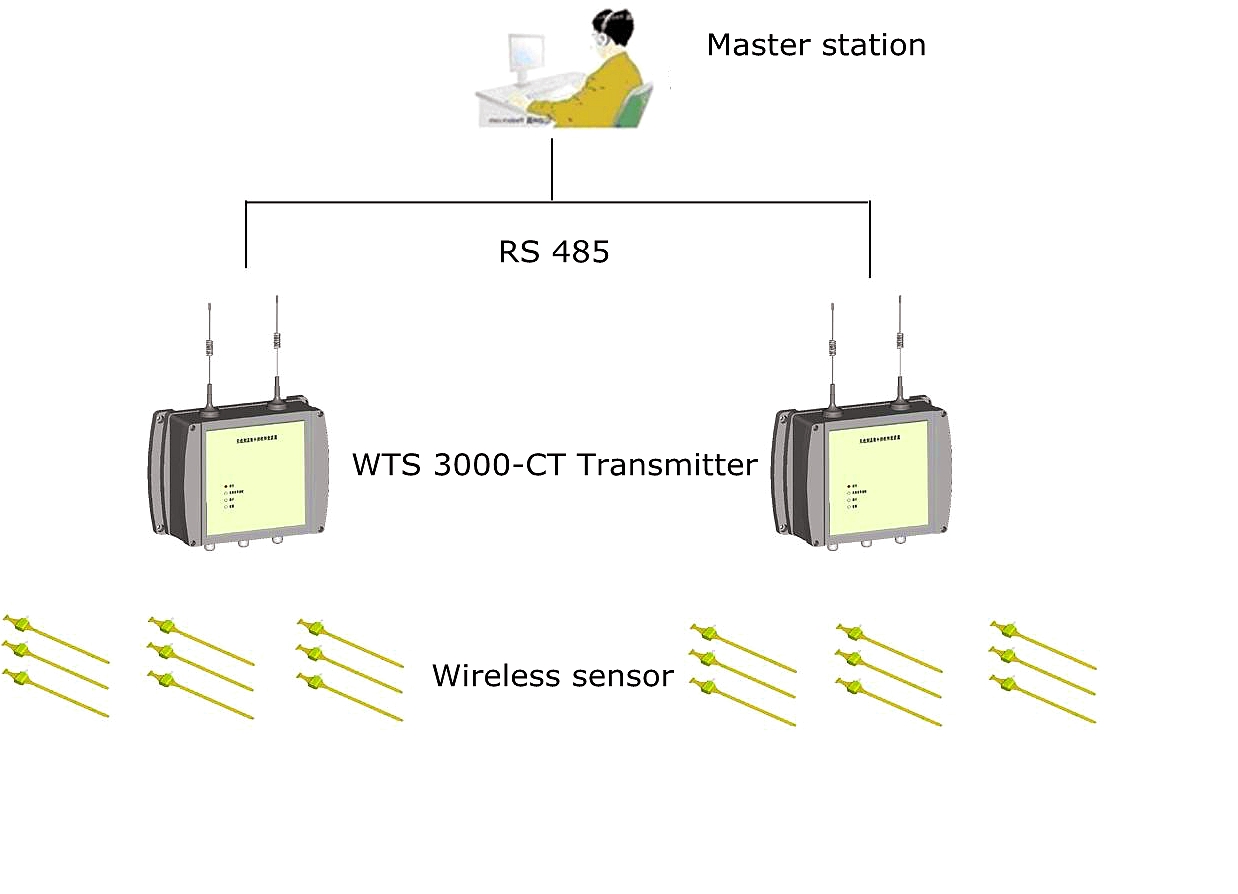

RS 485 Networking

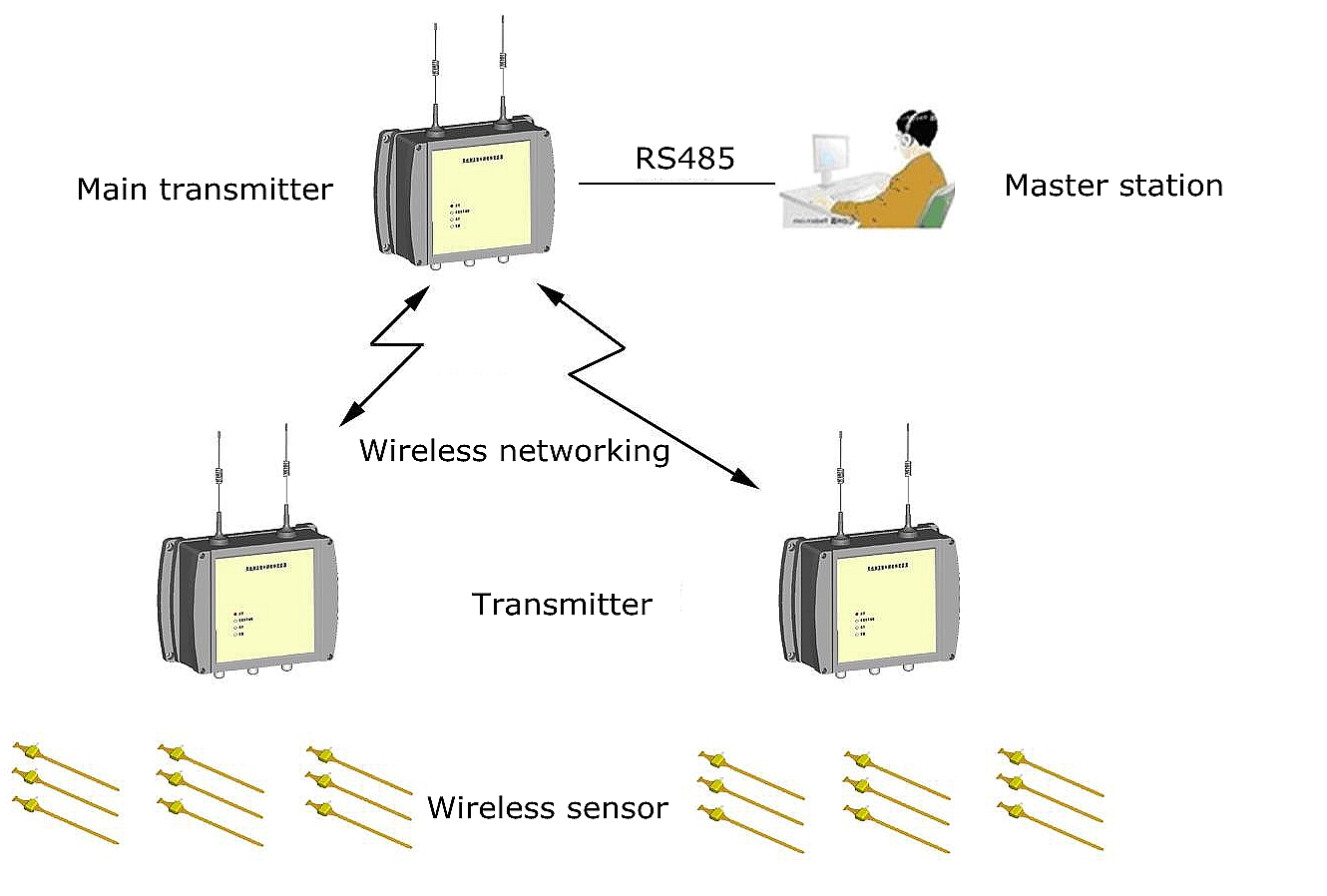

Wireless Networking
Function introduction:
1. High receiving sensitivity, longer transfer distance
2. Local temperature test
3. MODBUS communication or 433MHz communication
4. Max. monitor 300 sensors
|
ITEMS |
DETAILS |
|
|
Frequency range |
433M,support max.300 snesors |
|
|
Transfer distance |
300m(433mHz) |
|
|
Transfer current |
<40mA |
|
|
Max transmitting power |
+10DB |
|
|
Temp/test |
Range |
-40～+200 ℃ |
|
Accuracy |
± 1℃ |
|
|
Communication |
Type |
RS485 or 433MHz |
|
Protocol |
RS 485: ModBUS-RTU |
|
|
Baud rate |
RS485:2400/4800/9600/19200bps,even parity, odd parity and non parity setting |
|
|
Auxiliary supply |
Range |
AC:85V～265V or DC：100V～360V |
|
Consumption |
≤2VA |
|
|
Environment |
Work temp. |
-20℃～55℃ |
|
Storage temp. |
-40℃～85℃ |
|
|
Humidity |
0～95％,non-condensate |
|
|
Safety |
Insulating strength |
Output. input/hull/power supply:2KV acrms,1 minute |
